INTRO

Programming is like magic.

You can make objects appear and disappear.

You can animate and wiggle them.

You can control and explode them!

Press the wand menus below to see how to use spells to make Magic!

Here is a link to the  SPELLS

1. DISPLAY OBJECTS

SHOW ▼︎

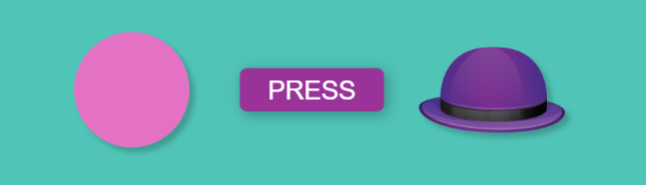

Display objects are things you can see when they are on the stage (the screen). Examples are shapes, components (labels, buttons, etc.) and images.

An object is made from a class - which has the instructions or ingredients for the object. Use the new keyword to make the object from its class.

01
new Circle(50, red)

We can make the object do something with a method, which is like a verb. Here, we center the object on the stage and make it draggable. We use a dot to separate the object and the methods. At the end of the line is a semi-colon (;) that ends the statement.

02
new Circle(50, red).center().drag();

Sometimes we have to use an object later so we store it in a variable. Then we can change a property of the object. Properties are like adjectives.

03
var button = new Button().pos(100, 100);
button.enabled = false;  // turn off the button

// Class names start with a capital letter
// Variable names should start with lower case
// They can't have spaces so we use camelCase ;-)

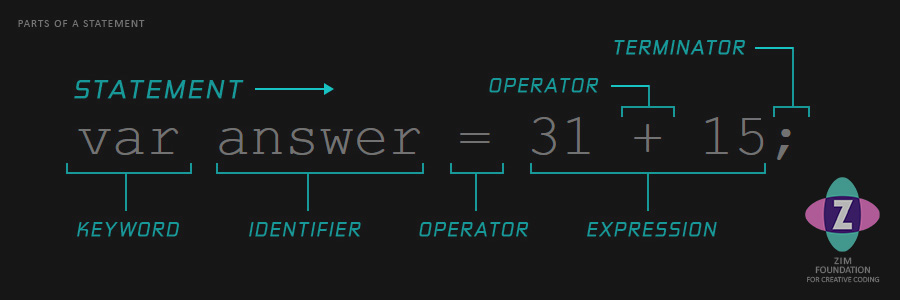

Statements usually run in order to make the magic happen! Here are parts that a statement can have:

The characters, words and order they are written is called syntax. Code will not work if syntax is broken. We call this a bug. Bugs are quite common so you will have to summon patience! Think of coding as the world's greatest puzzle and feel rewarded when it works!

ZIM Skool - JavaScript Coding Lessons for Kids, teens and all! See MORE at ZIM Skool!

2. PARAMETERS AND ANIMATION

SHOW ▼︎

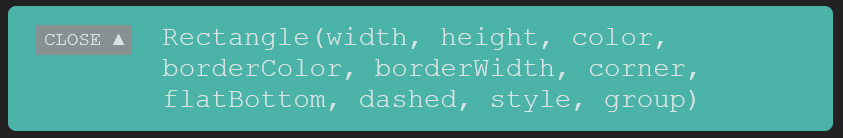

Parameters can be used to give an object or a method extra information. We write these in the round brackets () and they must be in the order shown in the Spell list.

04
new Rectangle(100, 50, blue, green, 10, 20)
    .center(building); // a new line is fine for dots

// 100 and 50 are the width and height
// blue and green are the color and borderColor
// 10 and 20 are the borderWidth and corner
// building (must exist) is a container
// Containers can hold any number of objects

If you want to use the default values you can write null. You must keep the order and you can't just leave parameters blank.

05
new Rectangle(100, 50, blue, null, null, 20)
    .center(building);

// do not provide a borderColor and borderWidth

It can be annoying to count the number of nulls. So we have a second way to make parameters. We can use a configuration object { } as a single parameter:

06
new Rectangle({
    width:100, height:50, color:blue, corner:20
}).center(building);

// {parameter:value, parameter:value, etc.}
// ** the order does not matter
// ** can be on one line or lots of lines

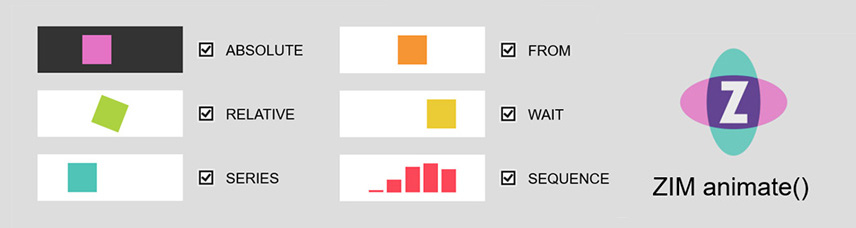

ANIMATION

We often use a configuration object when we animate things to make them move, spin, fade out, or scale bigger, loop and rewind!

07
new Rectangle(100,100,green)
    .centerReg() // will now animate around middle
    .animate({
        props:{scale:2}, // can animate more than one property
        time:1000,       // milliseconds - so one second
        rewind:true,     // get bigger then smaller
        loop:true        // keep doing animation
    });

See the ANIMATE page for all sorts of animation options!

ZIM Skool - JavaScript Coding Lessons for Kids, teens and all! See MORE at ZIM Skool!

3. FUNCTIONS AND EVENTS

SHOW ▼︎

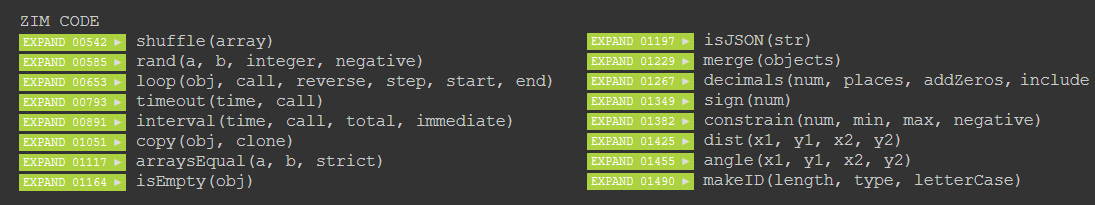

A function is a block of code that you can run whenever you want and as many times as you want. An example would be to explode an asteroid. You can make (define) your own function:

08
function greet(message, location) {
    new Label("hi").pos(rand(200,800), 500);
    // put as many statements as you want here!
    // the { } are called a "block of code"
    // they are like a box that holds the code to run
    // we indent to easily see what is in the function
}

// a function must be called to run
greet(); // call (run) the function - a label gets added
greet(); // call the function again - another label gets added

// rand() is a function to get a random number
// pos() is a special function - a method - stored on the object
// note that pos() is dotted to the object and rand() is not

Parameters can be passed to the function.

09
function greet(message, location) {
    new Label(message).pos(location, 500);
}
greet("hello", 200); // Label says hello at x=200
greet("goodbye", 600); // second Label says goodbye at x=600

EVENTS

An event is when something happens. This is the magic of interactivity!

Example Events

  • click
  • mousedown
  • pressmove
  • pressup
  • change
  • complete
We use the on() method which has TWO parameters:
   1. the type of event
   2. a function to call when the event happens

10
var button = new Button().center();
button.on("click", go);
function go() {
    zgo("https://zimjs.com"); // short ZIM function to go to URL
}

Often we use a anonymous function (function literal) as the second parameter of the on() method:

11
var button = new Button().center();
button.on("click", function() { // use a function with no name
    zgo("https://zimjs.com");
}); // note the closing round bracket

ZIM Skool - JavaScript Coding Lessons for Kids, teens and all! See MORE at ZIM Skool!

4. ARRAYS AND LOOPS

SHOW ▼︎

An Array holds a list of things in [ ] that we can access by index number that starts at 0.

12
var colors = [pink, orange, red, green, blue];

var firstColor = colors[0]; // gets the first color, pink

new Circle(90, firstColor).center(); // a pink circle
new Circle(50, colors[2]).center(); // with a red circle on top

// we can use the length property of an array too
new Circle(20, colors[colors.length-1]).center(); // blue on top

// we can change colors, add colors, sort, shuffle and more!
colors[1] = brown; // the second color is now brown
colors.push(grey); // grey has been added to the end
colors.sort(); // alphabetical order using sort() method
shuffle(colors); // ZIM function to randomize array

LOOPS

A loop repeats a block of code between { } as many times as you want:

13
loop(10, function() {
    new Triangle().center().drag(); // 10 draggable black triangles!
});

loop(10, function(i) {
    // i increases each loop - 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
    new Triangle().pos(100+i*100, 500);
    // 10 triangles spaced by 100 pixels across the stage
});

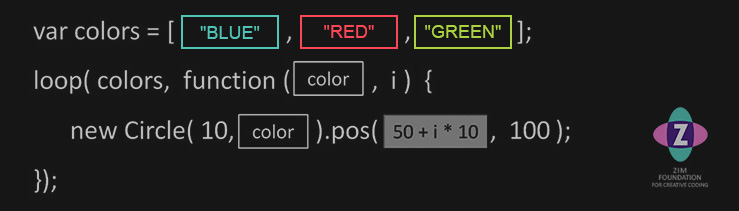

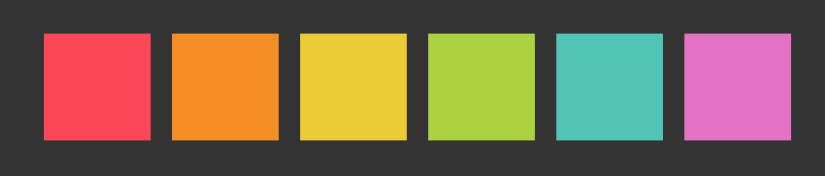

We can also loop through an array!

14
var colors = [red, orange, yellow, green, blue, pink];
loop(colors, function(color, i) {
    // color will be red, then orange, then yellow, etc.
    new Rectangle(50, 50, color).pos(20+i*60, 20);
});

And loop through a Container:

15
// the rectangles are now on the stage which is a container
loop(stage, function(object) {
    object.sca(.5); // makes each rectangle half as big
});

These examples are with the ZIM Loop. There are also for loops and while loops. These are common to all programming languages do similar things but with different syntax. See the MORE link for examples.

ZIM Skool - JavaScript Coding Lessons for Kids, teens and all! See MORE at ZIM Skool!

5. CONDITIONALS AND DEBUGGING

SHOW ▼︎

Programming uses logic to determine what happens. Another word for this is a conditional or an if statement.

16
if (circle.color == blue) {
    circle.alp(.5);
}

// this compares the colors and if equal (==) then
// sets the alpha (transparency) of the circle to half

You can do something else if the condition is false:

17
if (circle.color == blue) {
    circle.alp(.5);
} else {
    circle.alp(0); // hide the circle
}

You can also do multiple conditions:

18
if (circle.color == blue) {
    circle.color = black; // change color to black
} else if (circle.color = red) {
    circle.color = white; // change color to white
} // could add another else if () {} or an else {}

DEBUGGING

When the code breaks you will probably see an error message. Here are some common bugs:

Syntax Errors

  1. Forgot to end a quote " ' ` or a bracket ( { [
  2. Too many brackets (selecting a bracket highlights its match)
  3. Using a keyword that does not exist
  4. Typos - spelled a keyword incorrectly
  5. Using an undefined variable in an expression
  6. Using a bad character (-+*&, etc.) in a variable name
  7. missing comma (,) or colon (:) in array or object literal

If nothing shows up - here are some things to check for:

Nothing Shows

  1. The Internet is down
  2. You forgot to add object to the stage - use addTo(), center(), centerReg()
  3. You forgot to put stage.update() at the end of an event function
  4. When adding to a container, remember to add the container to the stage
  5. You are viewing the wrong file

ZIM Skool - JavaScript Coding Lessons for Kids, teens and all! See MORE at ZIM Skool!

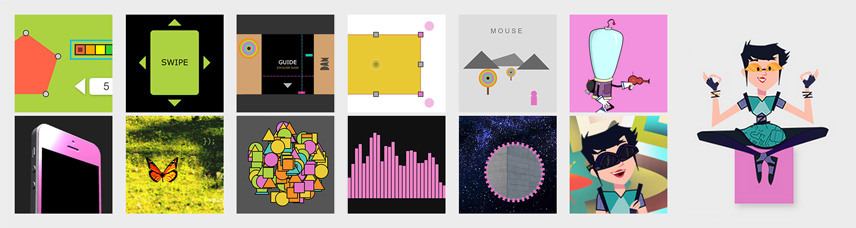

6. CONTROLS

SHOW ▼︎

Controls help you do things with one or more objects. We will look at a few but there are many more.

19
var circle = new Circle(50, red).center();
new MotionController(stage, circle);

// the circle will move to where you press on stage
// add ,"mousemove" to make the circle follow your mouse
// or use "keydown", "gamebutton", "gamestick", or "swipe"

You can use a Ticker to constantly check for something:

20
var rectangle = new Rectangle().pos(100, 100);
Ticker.add(function() {
    // assuming we are controlling the circle from above
    if (circle.hitTestRect(rectangle)) {
        rectangle.removeFrom();
        // the Ticker automatically updates the stage
    }
});

Use an interval to keep on adding new rectangles. An interval is like a Ticker but you give it a time interval. There is also timeout which runs once after a certain time.

21
var rectangles = new Container().addTo();

// every second add a new Rectangle randomly to the container
interval(1000, function() {
    new Rectangle().addTo(rectangles).pos(rand(stageW-100), rand(stageH-100));
});

// in a Ticker, loop through all the rectangles
Ticker.add(function() {
    loop(rectangles, function(rectangle) {
        if (circle.hitTestRect(rectangle)) {
            rectangle.removeFrom();
            // the Ticker automatically updates the stage
        }
    }, true); // loop backwards when removing
});


CONCLUSION

Apprentice, you have seen the secrets of many apps and games!

Please continue to explore and have a great time coding.

challenge your friends to make amazing creations.

Start a coding club and let your teachers know about ZIM.

All the best, we love creative coders!


Pragma and Dr. Abstract
